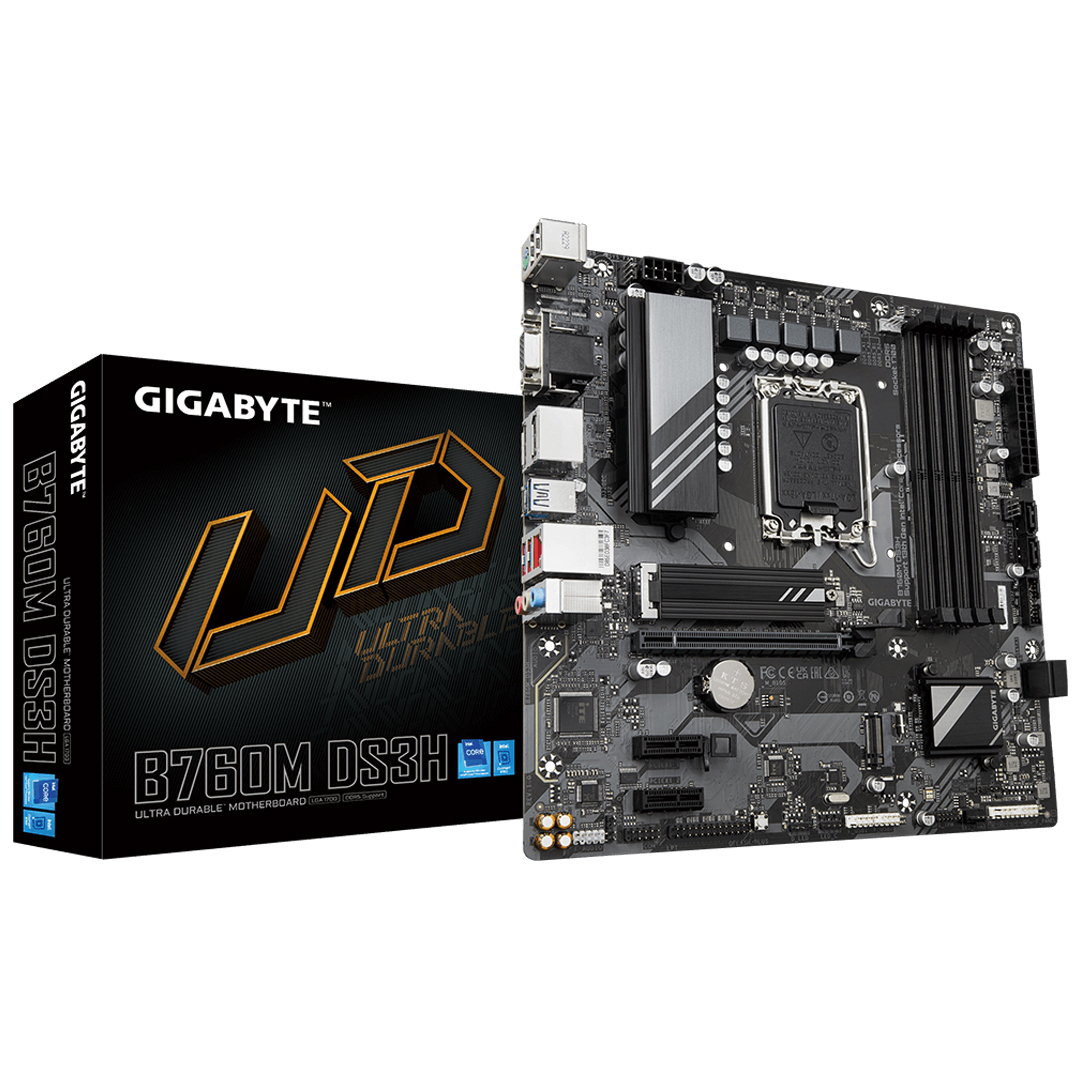

DTB255 Bo mạch chủ GIGABYTE B760M DS3H LGA1700 DDR5*4 hỗ trợ NVME

1. 14th and 13th Generation Intel^® Core™ i9/i7 Processors:
   Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules
2. 13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors:
   Support for DDR5 4800/4400 MT/s memory modules
3. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
   * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x S/PDIF Out header
17. 1 x Q-Flash Plus button
18. 1 x reset jumper
19. 1 x Clear CMOS jumper

1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x DisplayPorts
6. 3 x USB 3.2 Gen 1 ports
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
8. 1 x RJ-45 port
9. 3 x audio jacks

1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1. Micro ATX Form Factor; 24.4cm x 24.4cm
